Overmolding vs. Insert Molding

Explore the key differences between overmolding and insert molding and how each can benefit your manufacturing projects.

Introduction to Overmolding and Insert Molding

Overmolding and insert molding are two common techniques used in manufacturing to create plastic parts with special features. These methods are used in many industries because they make products stronger, more versatile, and better designed.

Overview of Overmolding

Overmolding is a process where one material is molded over another. Usually, a softer material like rubber is molded on top of a harder plastic base. This is helpful for adding comfort, grip, or protection to products. For example, a toothbrush with a rubber handle for a better grip is made using overmolding.

What is Overmolding?

• Detailed Explanation of Overmolding: Overmolding is a process that combines two or more materials to make a single product. First, a base part is made through injection molding. Then, a second material, often softer, is molded over or around the base. This helps make the product more functional and look better by combining different materials.

• Materials Commonly Used: Overmolding usually involves combining hard plastic materials like ABS, polycarbonate, or nylon with softer materials like thermoplastic elastomers (TPE), silicone, or rubber. The choice of materials depends on the desired features, like flexibility, durability, or comfort.

• Types of Products Ideal for Overmolding: Overmolding is great for products that need better comfort or extra protection. Examples include toothbrushes, power tool handles, medical devices, and protective cases for electronics. These products benefit from the extra grip, cushioning, and overall better user experience that overmolding provides.

Overview of Insert Molding

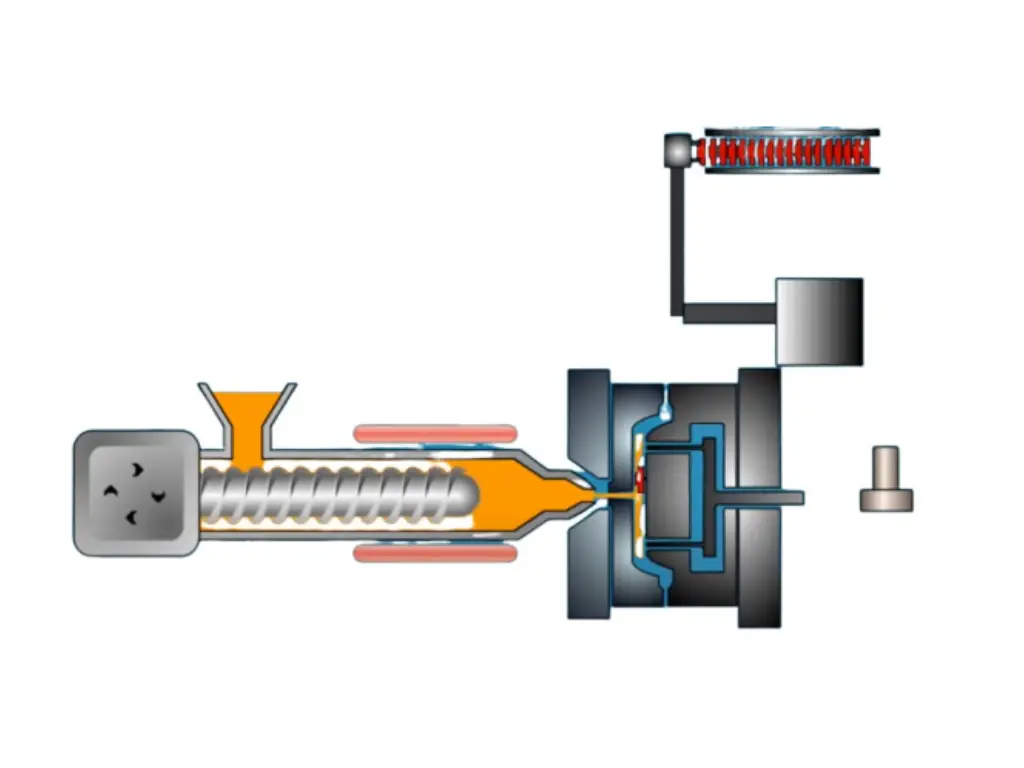

Insert molding involves placing a pre-made piece, usually metal, inside the mold before injecting plastic. The plastic then flows around the insert, creating a part that has both plastic and metal. This is often used to make parts that need extra strength or attachment points, like screws or electronic components.

What is Insert Molding?

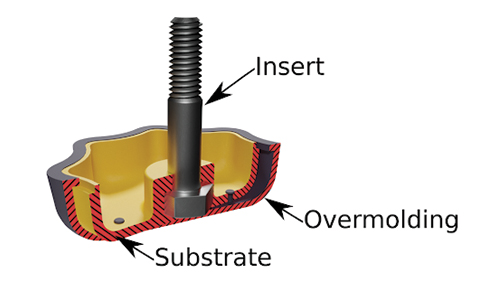

• Detailed Explanation of Insert Molding: Insert molding is a process where a metal or other component is placed into a mold, and plastic is injected around it. This makes a single part that combines both plastic and the inserted component. The insert can be metal, ceramic, or another material that adds strength or special features to the final product.

• Materials and Components Typically Used: Insert molding commonly uses plastic materials like ABS, polycarbonate, or nylon, combined with inserts made from metals like brass, stainless steel, or aluminum. These inserts can be threaded parts, pins, or electronic components, which add strength or functionality.

• Common Applications of Insert Molding: Insert molding is used in many products, including medical devices, automotive parts, electrical housings, and consumer electronics. It is especially useful for parts that need secure attachment points, like screws or connectors, or for adding strength to a plastic part.

Key Differences Between Overmolding and Insert Molding

• Comparison of Processes: Overmolding involves molding one material over another, while insert molding involves placing a pre-made component into a mold before injecting plastic around it. Overmolding usually needs multiple molding steps, while insert molding combines the insert during the molding process.

• Differences in Materials: Overmolding often uses a combination of a hard plastic base and a softer material like rubber or TPE. Insert molding combines plastic with a solid insert, usually made of metal or ceramic.

• Differences in Applications: Overmolding is used for products that need a comfortable grip or better protection, like tool handles or electronic cases. Insert molding is ideal for products that need extra strength or secure attachment points, like electrical connectors or medical devices.

• Design Complexities: Overmolding requires careful consideration of how well the materials stick together, while insert molding needs precise placement of the insert to ensure the plastic flows around it properly. Both processes have their own design challenges, but each offers unique benefits depending on what the product needs.

Benefits of Insert Molding

• Stronger Bonds, Simpler Assembly, and Durability: Insert molding creates a strong bond between the plastic and the insert, making the final product durable. It also simplifies assembly by combining multiple parts into one molded piece, reducing the need for extra assembly steps.

• Examples of Typical Insert-Molded Products: Examples of products that use insert molding include medical device housings with metal parts, automotive components with metal inserts for added strength, and electrical connectors that need secure, threaded attachment points.

Choosing the Right Process for Your Project

• Factors to Consider: When deciding between overmolding and insert molding, consider things like material compatibility, design complexity, and the final use of the product. Overmolding is good for products that need a comfortable grip or extra protection, while insert molding is best for parts that need structural strength or integrated metal parts.

• Cost Implications and Production Volumes: Both processes have different costs. Insert molding can be more cost-effective for strong parts with fewer assembly steps, while overmolding can be more expensive because of the extra molding steps. Production volume also matters—making more parts can help lower the cost of tooling and make either process more affordable.

Conclusion

Overmolding and insert molding are two key manufacturing techniques that combine different materials to improve product functionality, strength, and design. Overmolding is best for adding comfort or protection, while insert molding is ideal for adding strength and integrating multiple components.
