Threaded Hole: Everything You Need to Know

Explore the creation of threaded holes, their distinction from tapped holes, and the optimal methods for creating them.

Introduction

A threaded hole is a cylindrical cavity with a helical ridge, or thread, winding around its inner wall.

This thread design allows for the insertion of a threaded fastener, such as a screw or bolt. The interlocking threads create a strong, frictional force that holds the components together.

Understanding Threaded Hole

What is Threaded Hole?

A threaded hole is a circular hole with a helical groove, or thread, machined on its inner surface. This thread follows a specific profile, like a triangular or square shape, with a defined pitch (distance between thread repetitions) and diameter.

This internal thread is designed to perfectly mesh with the external threads of a fastener, like a screw or bolt.

Features of Threaded Hole

Hole Diameter

This refers to the actual diameter of the drilled hole before threading. It's crucial to choose the correct drill size to ensure proper thread formation and avoid damaging the material.

Thread Type

There are various thread types, each with its own advantages. Common examples include metric threads (millimeters) and imperial threads (inches), with further subcategories like Unified Coarse Thread (UNC) or Unified Fine Thread (UNF).

Thread Size

This refers to the designated size of the thread, often indicated by a combination of a number and a letter (e.g., M10, UNC 1/4-20). It considers both the major diameter (peak of the thread) and the minor diameter (valley of the thread).

Thread Pitch

This defines the distance between two corresponding points on adjacent threads. A finer pitch (more threads per inch) offers better precision and vibration resistance, while a coarser pitch provides faster assembly and may be stronger for lower loads.

Depth

This refers to the length of the threaded section within the hole. There are two main types of threaded holes based on depth:

• Through Hole: Extends entirely through the material, allowing the fastener to pass completely through.

• Blind Hole: Doesn't go all the way through, with a flat or conical bottom. The fastener can only be inserted up to a certain depth.

Factors Influencing Design and Use of Threaded Holes

The design and use of threaded holes depend on several crucial factors.

• Material Considerations: The type of material used for the workpiece and the fastener will influence the choice of thread type and size. For example, softer materials might require coarser threads for better grip, while harder materials can handle finer threads.

• Load-Bearing Requirements: The intended load on the connection will determine the strength requirements for the hole and fastener. Larger or higher-grade threads are needed for high-stress applications.

• Environmental Factors: Exposure to heat, moisture, or corrosive environments necessitates using materials and coatings that can withstand those conditions.

Techniques for Creating Threaded Hole

There are two main categories for creating threaded holes: machining processes and non-machining methods. Each offers advantages depending on the application, material, and desired outcome.

Machining Processes for Threaded Hole

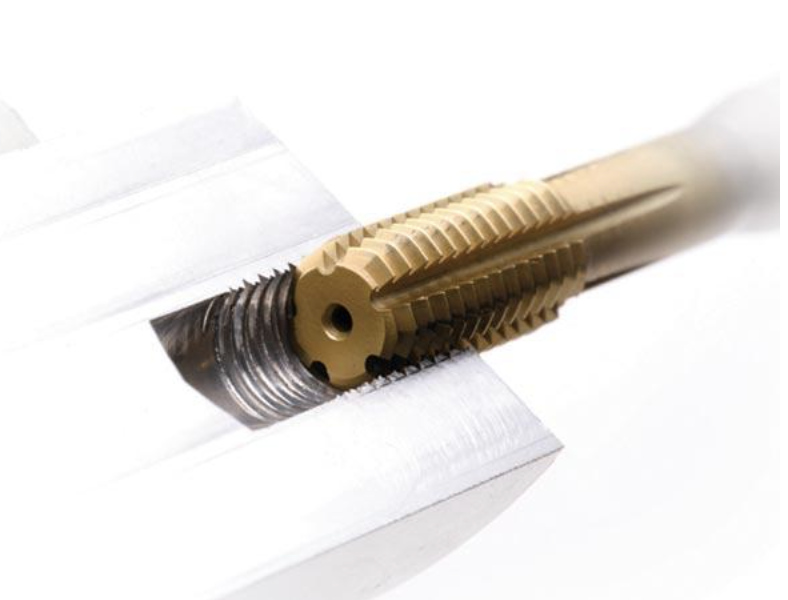

Thread Tapping

This is the most common and versatile method. A tap, a fluted tool with a gradually decreasing diameter and matching thread profile, is used to cut the threads into a pre-drilled hole.

Tapping is relatively simple but requires careful selection of tap size and lubricant to ensure smooth thread formation and prevent tool breakage.

Thread Milling

This CNC-controlled process utilizes a rotating tool with a specific thread profile to mill the threads directly into the workpiece.

It offers high precision and is suitable for creating various thread types, including internal and external threads on complex shapes. However, it requires specialized equipment and may be less cost-effective for simple applications.

Thread Rolling

This method uses a forming tool, often a pair of rolling dies, to cold-form the threads into the material. The dies press the desired thread profile onto the workpiece, displacing the material rather than removing it.

Thread rolling is faster than tapping, strengthens the material around the hole, and creates work-hardened threads with superior wear resistance. However, it's limited to specific materials and thread types.

Non-Machining Methods for Threaded Hole

Welded Inserts

Threaded inserts are pre-manufactured metal rings with external threads. These inserts are welded into a pre-drilled hole, creating a strong and reliable internal thread. This method is beneficial for weak or thin materials where tapping might not be suitable.

Press-Fit Inserts

Similar to welded inserts, press-fit inserts are pre-threaded components. However, they are mechanically pressed into a slightly undersized hole, creating a frictional force that holds them in place.

This method is faster than welding and suitable for applications where heat is undesirable.

Tapped Holes vs. Threaded Holes

Definition & Characteristics

Threaded Hole

A general term for any hole with helical threads on its inner surface, regardless of how it was created. It can be formed through various methods, including tapping, thread milling, or even come pre-threaded (e.g., in pipes).

Tapped Hole

A specific type of threaded hole created using a tapping process. A tap, a specialized cutting tool, removes material to form the threads within a pre-drilled hole. Tapped holes are known for their versatility and affordability.

Tapped Holes vs. Threaded Holes: Key Differences

Formation Process

This is the main distinction. Tapped holes require a separate drilling step to create the initial hole, followed by tapping to form the threads.

Threaded holes can be formed in one step using methods like thread milling or come pre-threaded in certain materials (e.g., threaded rods).

Strength and Durability

Generally, tapped holes might have slightly lower strength compared to some other methods of creating threaded holes. This is because tapping removes material to form the threads, potentially weakening the surrounding area.

Thread milling or rolling, on the other hand, can sometimes even strengthen the material around the hole.

Installation Methods

Tapped holes require a separate tapping step after drilling the hole. This adds an extra step to the process.

Other methods of creating threaded holes might be part of the initial manufacturing process or involve simpler installation procedures like press-fitting inserts.

Tapped Holes vs. Threaded Holes: Pros and Cons

Tapped Holes

• Advantages: Simple and versatile method, suitable for various materials and hole sizes. Relatively low-cost compared to some other methods.

• Disadvantages: Requires precise drilling and tapping techniques to ensure proper thread formation and avoid damaging the material. May have slightly lower strength compared to other methods.

Threaded Holes (general)

• Advantages: Broader range of options for creating strong and durable threaded holes. Certain methods like thread rolling can even strengthen the material.

• Disadvantages: Some methods, like thread milling, require specialized equipment and might be less cost-effective for simple applications. Pre-threaded inserts might have limitations in terms of size and availability.

Maintenance and Repair of Threaded Holes

Common Issues and Challenges

Even the most carefully created threaded holes can encounter problems over time. Wear, tear, and improper use can lead to damaged threads, compromising the integrity of the connection.

• Stripped Threads: This occurs when the thread profile is worn down or damaged, preventing the fastener from gripping properly. It can happen due to over-tightening, cross-threading (forcing a screw in at an angle), using the wrong size fastener, or corrosion.

• Seized Threads: Threads can become fused together due to rust, corrosion, or excessive use of thread-locking compounds. This makes it difficult or impossible to remove the fastener.

• Broken Studs or Bolts: Occasionally, the threaded fastener itself can break within the hole, leaving a fragment stuck inside.

Techniques for Repairing Damaged Threads

Re-Tapping

If the damage is minor, re-tapping the hole using a tap with the same thread size can often restore functionality. However, this is only suitable for limited damage and may not be possible if the material is too thin.

Using Threaded Inserts

For more severe damage or when re-tapping is not an option, threaded inserts offer a reliable solution. These are pre-threaded metal sleeves that are inserted into the damaged hole, creating a new internal thread. There are different types of inserts, including:

• Heli-coils: These wire-like inserts are wound into the damaged hole, creating a strong and permanent repair.

• Solid Threaded Inserts: These are solid metal sleeves that are pressed or glued into the hole. They offer a high strength solution for larger holes.

Preventive Maintenance Strategies

Following these strategies can extend the life of threaded holes and ensure reliable connections for the long term.

• Use the Correct Fastener: Ensure the fastener matches the thread type and size of the hole perfectly.

• Proper Torque: Tighten fasteners to the recommended torque specifications to avoid over-tightening and damage.

• Lubrication: Apply a light coat of lubricant to threads before assembly to reduce friction and wear.

• Corrosion Protection: Use corrosion-resistant materials or coatings for both the hole and fastener, especially in exposed environments.

• Regular Inspection: Regularly check threaded connections for signs of wear, damage, or looseness. Address any issues promptly to prevent further deterioration.

Applications of Threaded Hole

Manufacturing

• Automotive: Engine components, body panels, chassis elements, and countless other parts rely on threaded holes for assembly and attachment.

• Machinery: From industrial equipment to machine tools, threaded holes secure gears, bearings, shafts, and various components for smooth operation and power transmission.

• Electronics: Circuit boards, heat sinks, and enclosures utilize threaded holes to mount electronic components and ensure proper heat dissipation.

• Furniture: Knock-down furniture relies heavily on threaded inserts, screws, and bolts for easy assembly, disassembly, and structural integrity.

Construction

• Buildings: Structural beams, columns, and other framing elements are often secured using large bolts and threaded connections for immense load-bearing capacity.

• Bridges: Threaded connections play a vital role in assembling bridge components, ensuring the structural integrity of these critical infrastructure elements.

• Plumbing and HVAC Systems: Pipes, valves, and fittings heavily rely on threaded connections to create leak-proof assemblies for water, gas, and air circulation systems.

Aerospace

• Aircraft Assembly: Threaded holes of various sizes and high strength are crucial for securely fastening critical aircraft components, demanding exceptional reliability and safety standards.

• Engine Construction: Internal engine components like pistons, cylinders, and crankcases utilize threaded holes for precise assembly and high-pressure operation.

• Spacecraft Assembly: Similar to aircraft, threaded connections are essential for assembling spacecraft structures and ensuring they withstand the extreme conditions of space.

Consumer Goods

• Appliances: From washing machines to refrigerators, threaded holes secure various internal components and enable the attachment of external parts like knobs and handles.

• Electronics: Threaded holes on the casing of electronics allow for the secure attachment of covers, batteries, and other user-serviceable components.

• Toys: Threaded connections are often used in complex toys to enable assembly, adjustability, and durability for playtime.

Medical Devices

• Prosthetic Limbs: Threaded connections are used to attach prosthetic limbs to patients, requiring biocompatible materials and precise tolerances.

• Surgical Instruments: Many surgical instruments utilize threaded connections for secure assembly and functionality during delicate procedures.

• Medical Implants: Certain types of medical implants, like bone screws, rely on threads for secure placement and functionality within the body.

Conlusion

Threaded holes are fundamental building blocks for creating secure and reliable connections across numerous industries. From the simple act of tightening a screw in everyday objects to the critical role they play in assembling airplanes and medical devices, threaded holes demonstrate their versatility and importance in the mechanical area.
